SPECIFICATIONS

Brand Name: lilygo

Condition: New

High-concerned chemical: None

Origin: Mainland China

Supply Voltage: 5V

Type: Logic ICs

is_customized: Yes

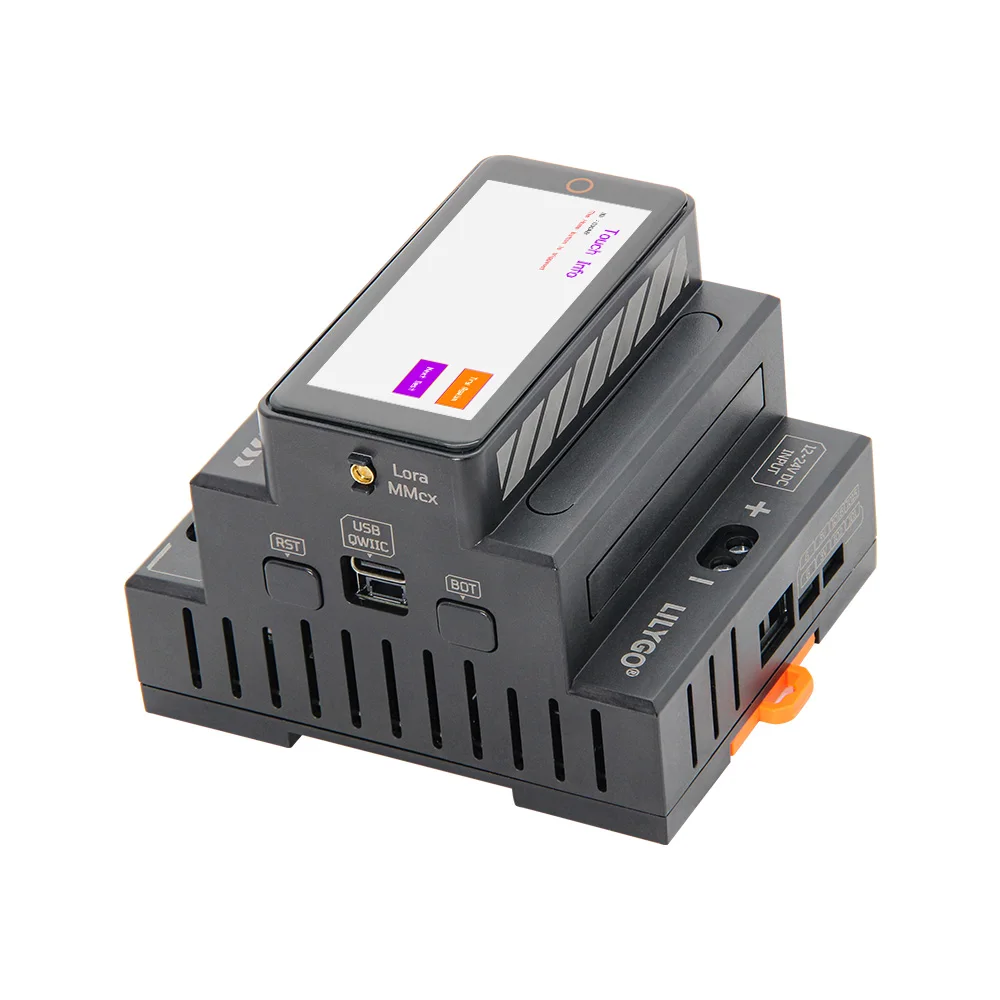

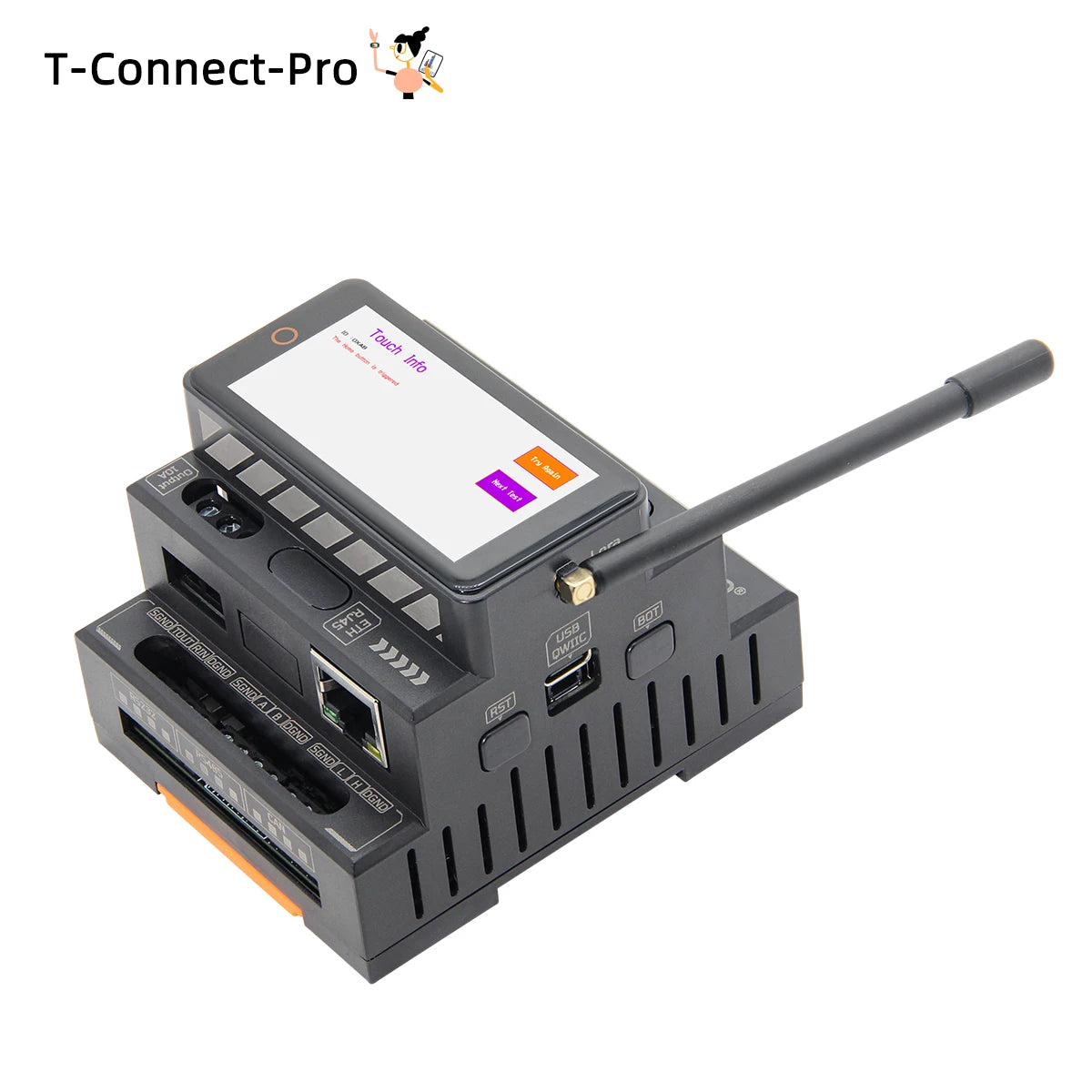

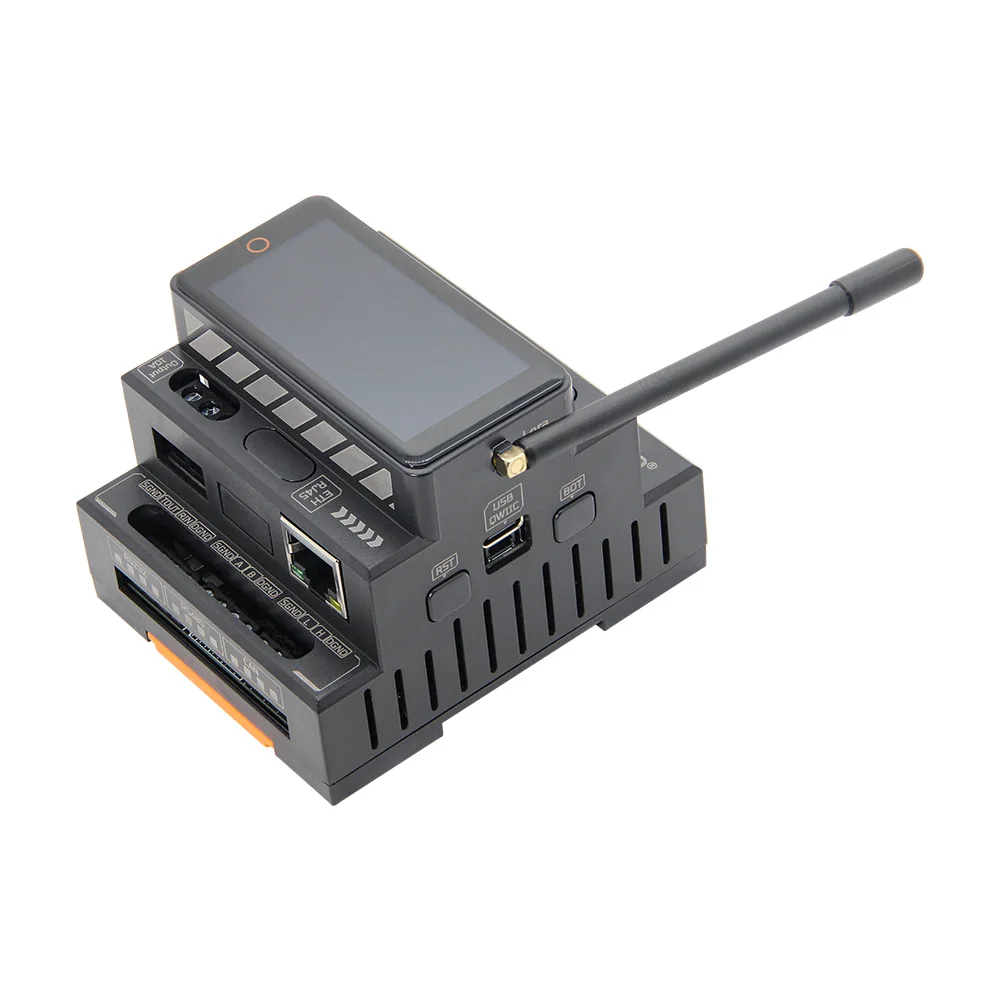

The LILYGO® T-Connect-Pro is a powerful and modular communication controller based on the ESP32-S3-R8 chip, equipped with 16MB Flash and 8MB (Octal SPI) PSRAM. Designed with a triple-layer PCB stack, it supports multiple industrial communication protocols, making it ideal for complex IoT and edge computing applications.

This board integrates CAN, RS485, and RS232 modules, enabling long-distance and industrial-grade communication. It also supports LoRa (SX1262) for low-power wide-area networking, and includes an Ethernet port (W5500) for stable wired connectivity. The 2.1" TFT LCD (222×480 resolution, ST7796 driver) and capacitive touch panel (CST226SE) offer an intuitive user interface.

Whether used for remote monitoring, automation control, or industrial networking, the T-Connect-Pro offers developers rich features in a compact and stackable form factor.

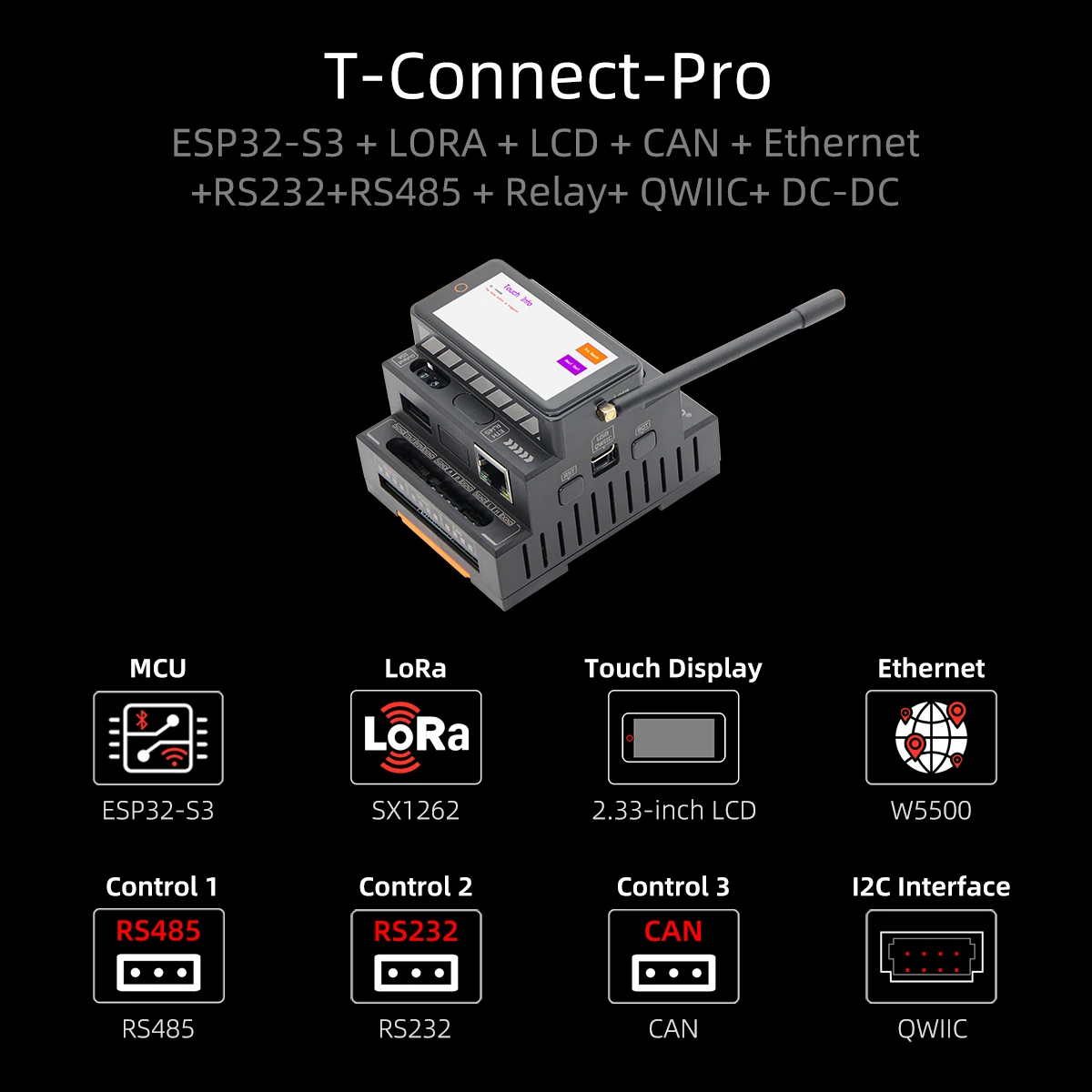

• Storage – 16MB SPI flash

• Display – 2.33-inch TFT LCD display with 480×222 resolution via ST7796 SPI display controller with touchscreen using CST226SE chip

• Networking

  • 10/100Mbps Ethernet RJ45 port via W5500 4-wire SPI controller

  • WiFi 4 and Bluetooth 5.0 LE via ESP32-S3

  • LoRa via HPD16A Semtech SX1262 module (Bands: 433, 868, 915, 920MHz) and external antenna

• USB – USB Type-C port for power and programming

• Serial

  • RS232 UART module (TD501D232H)

  • RS485 UART module (TD501D485H-A)

  • CAN Bus I2C module (TD501MCANFD); isolation voltage: 2500V

• Relay – 10A output relay

• Expansion – Qwiic connector

• Misc – BOOT and Reset buttons

• Power Supply

  • 12 to 24V DC input

  • 5V/500mA via USB port

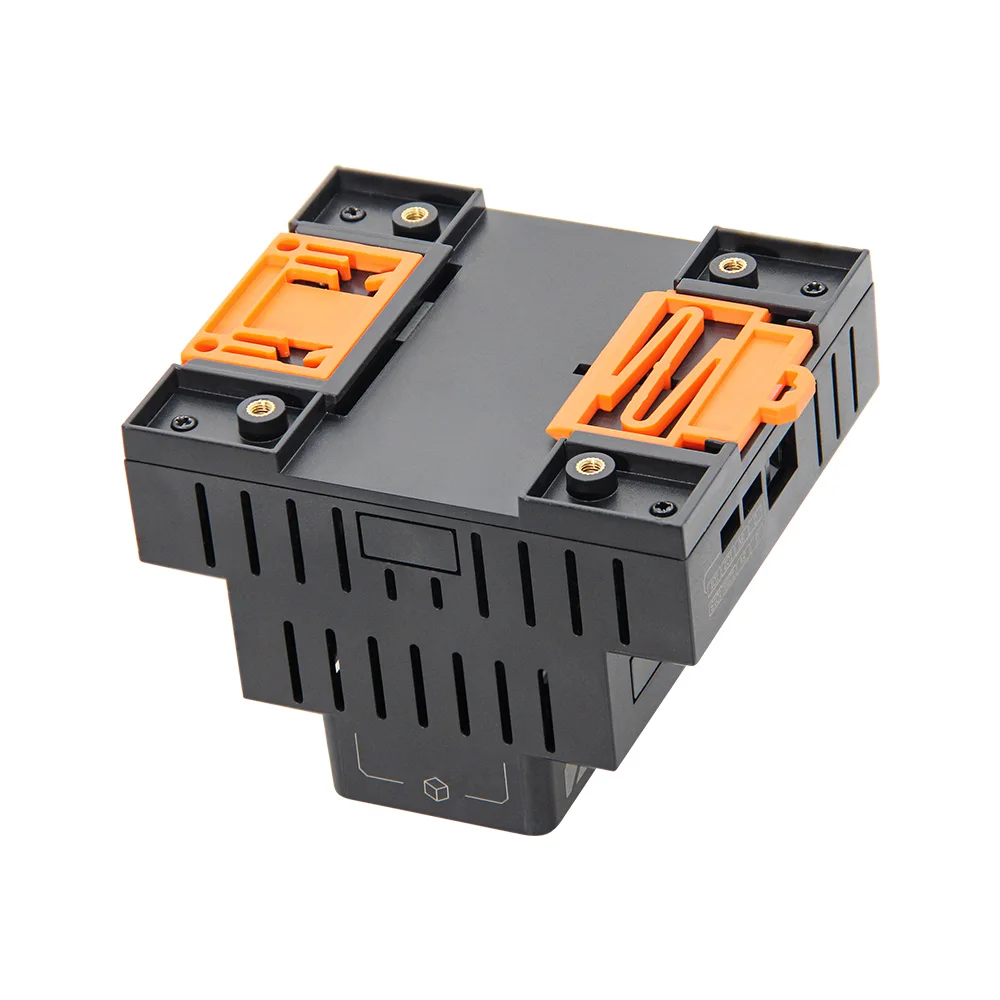

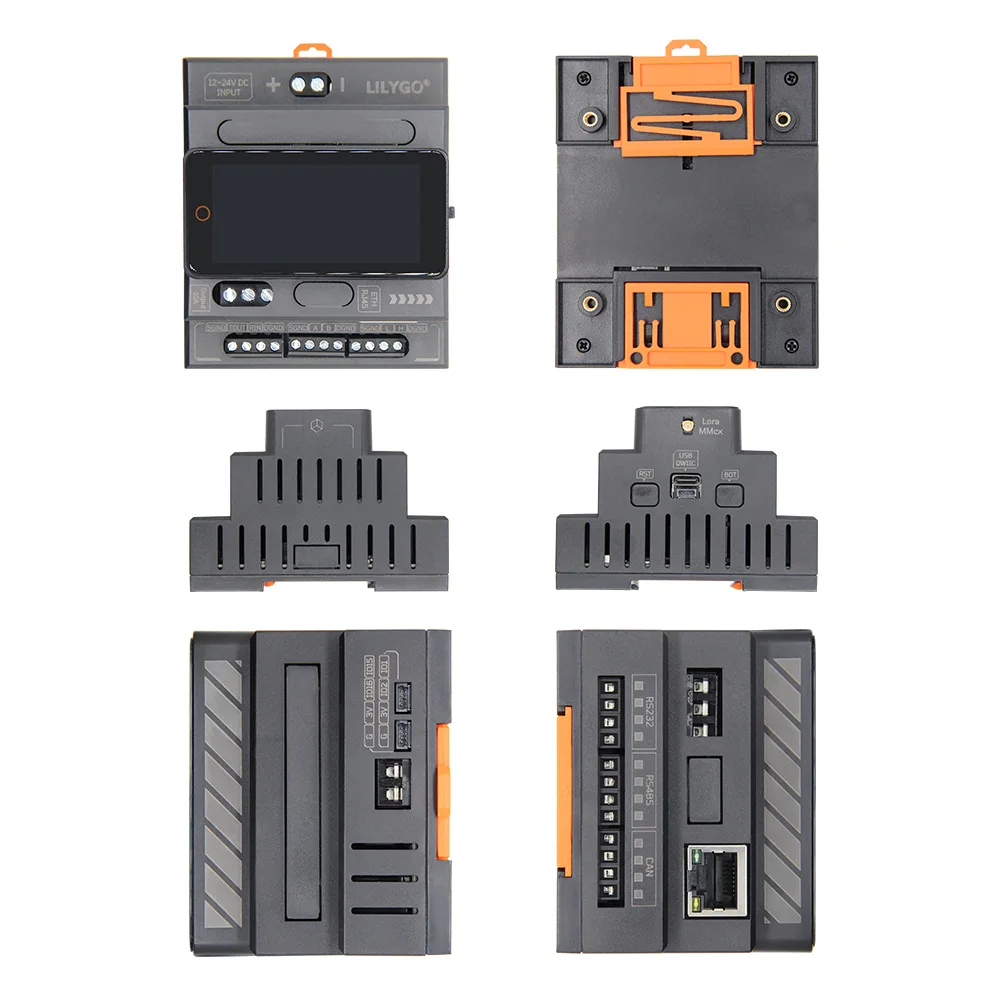

• Dimensions – 88 x 72 x 25mm; 4x M3 mounting thread

• Weight – 240 grams

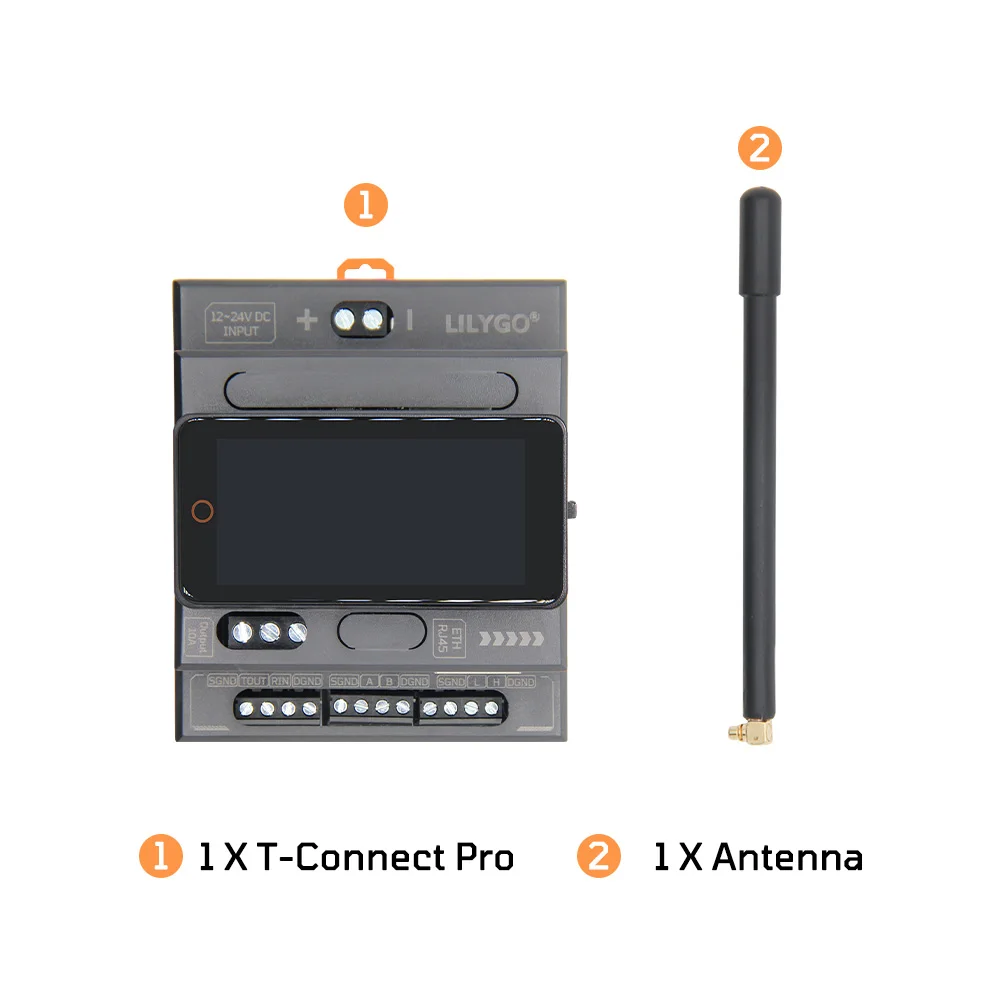

• 1 X T-Beam Modules

• 1 X LoRa Antenna
