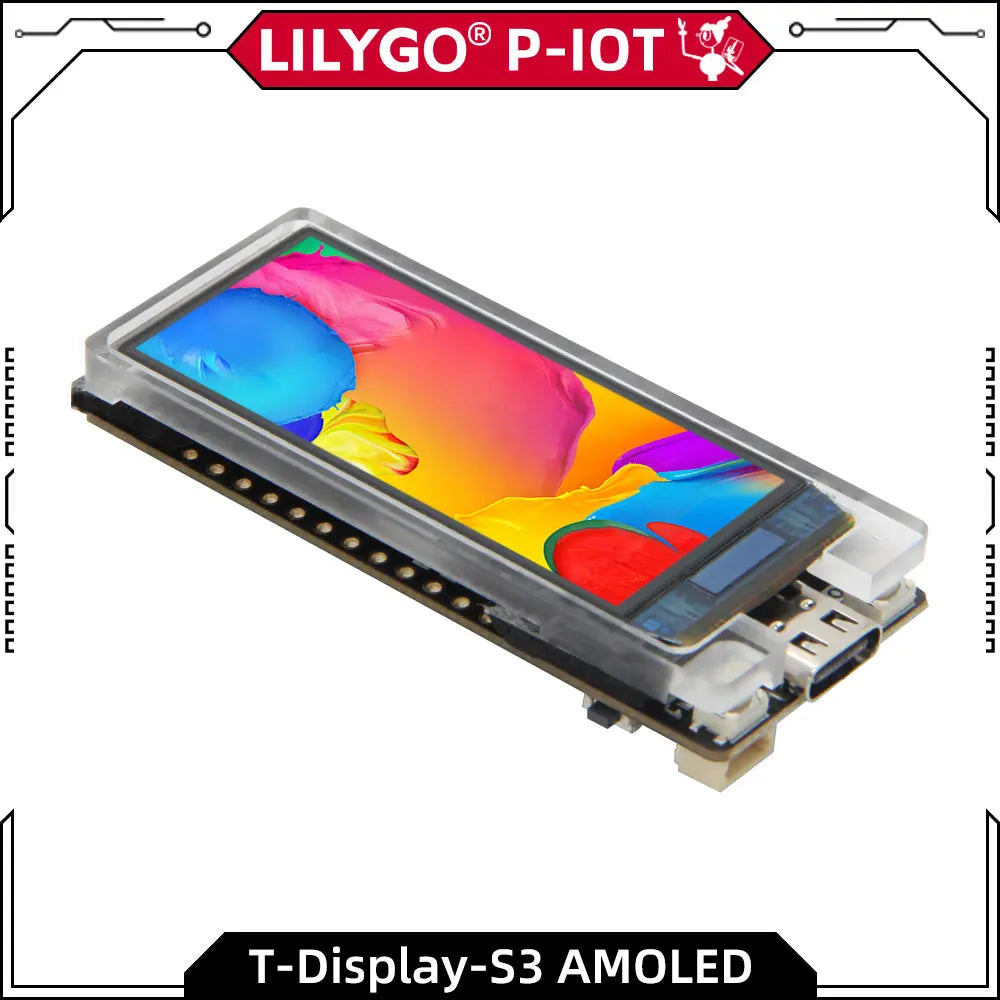

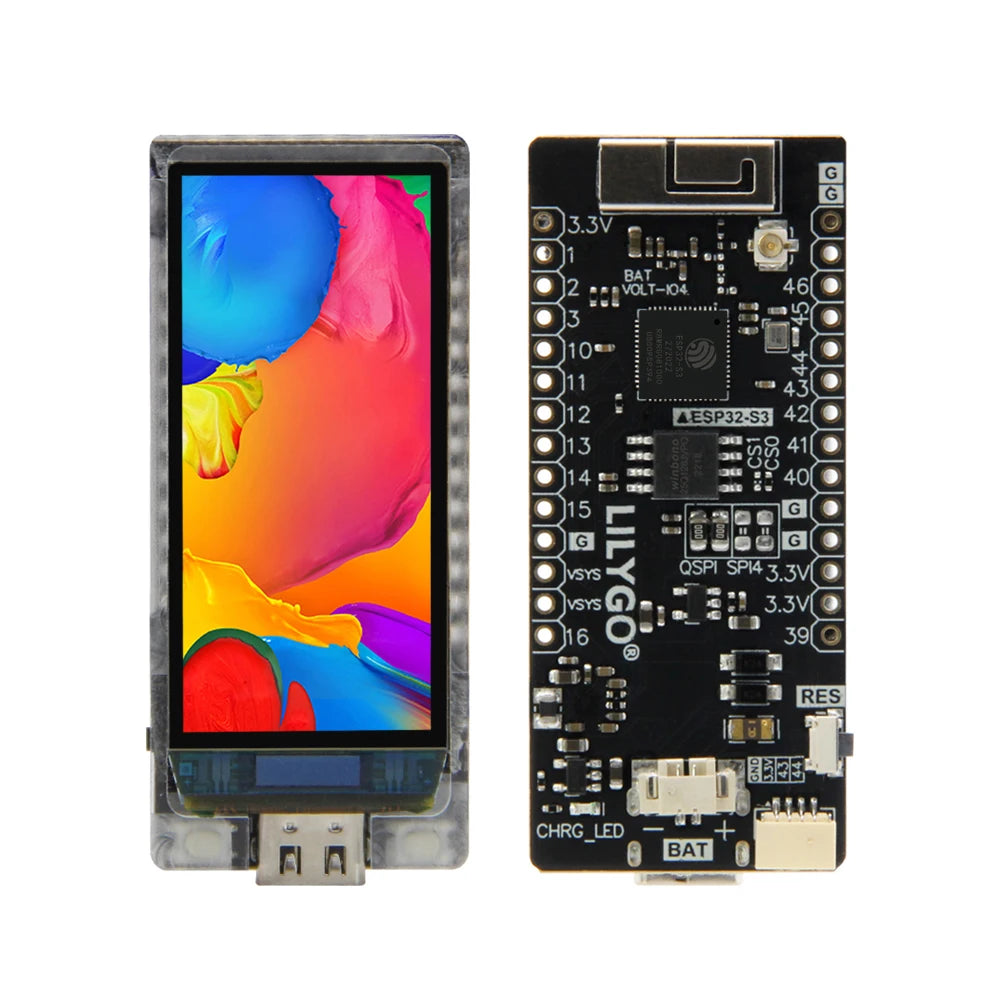

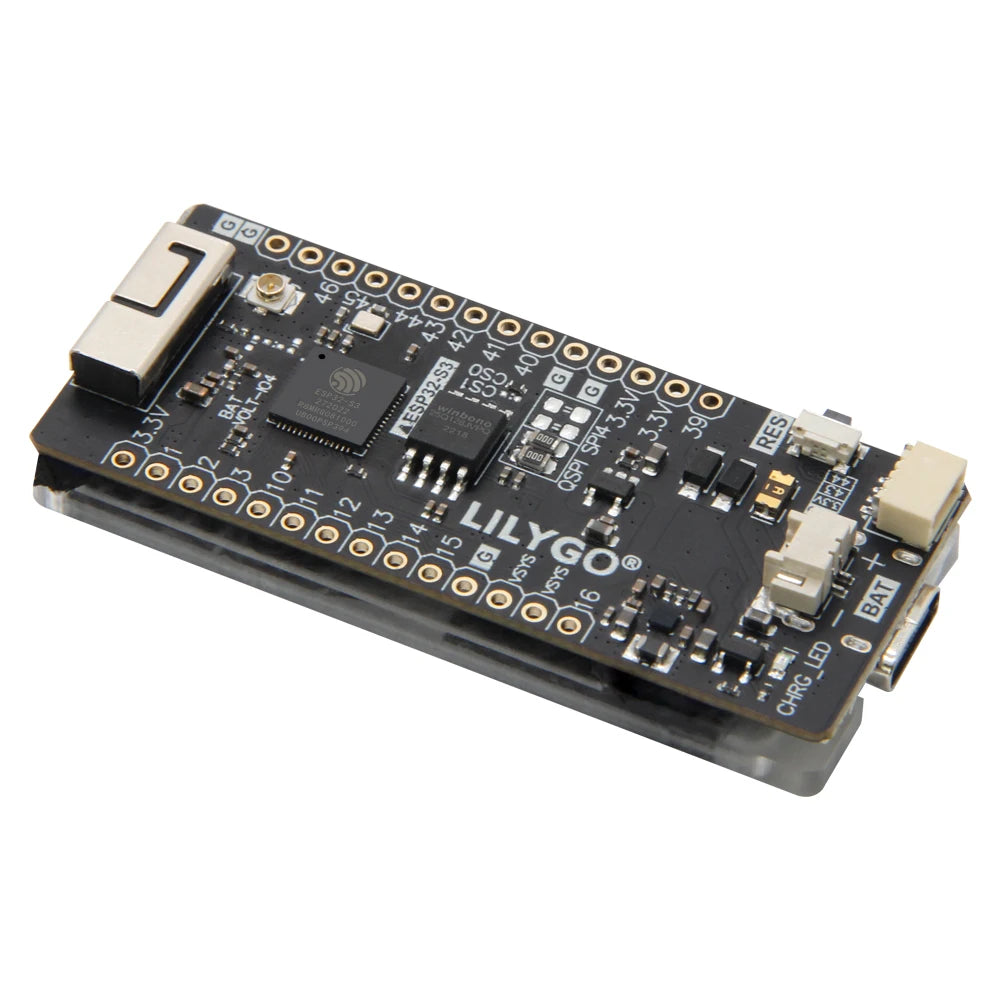

LILYGO® T-Display-S3 AMOLED ESP32-S3 Display Development Board RM67162 1.91 inch AMOLED Screen WIFI Wireless Module For Arduino
LILYGO® T-Display-S3 AMOLED ESP32-S3 Display Development Board RM67162 1.91 inch AMOLED Screen WIFI Wireless Module For Arduino
Ordinarie pris
338,57 SEK
Ordinarie pris
338,57 SEK
Försäljningspris
338,57 SEK
Skatter ingår.
Kvantitet
Det gick inte att ladda hämtningstillgänglighet
SPECIFICATIONS
Brand Name: lilygo
Chipset: ESP32-S3
Compatible Audio & Video Equipment Style: Display Equipment

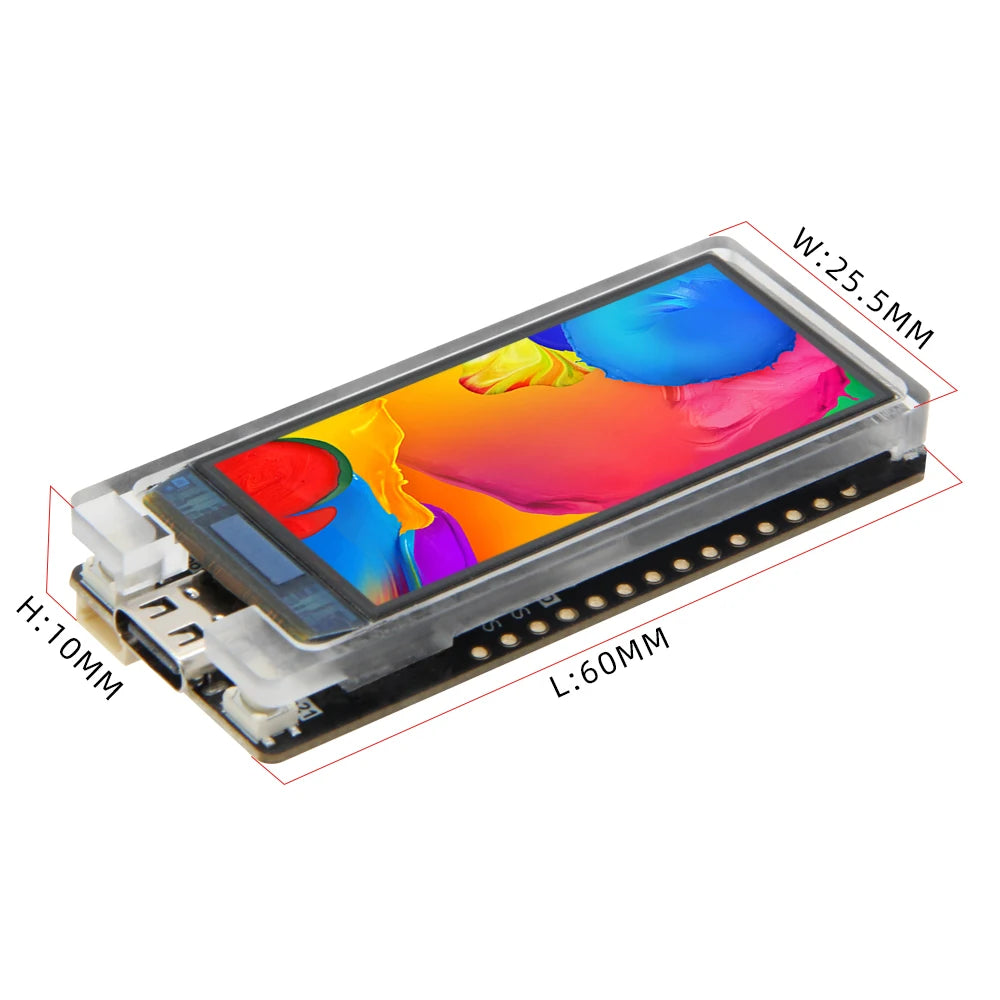

Dimensions (WxHxD)): 60*10*25.5mm
High-concerned chemical: None
Model Number: T-Display-S3 AMOLED
Not Solder Pin: H619
Origin: Mainland China
Package: Yes
Solder Pin: H634
Type: WIFI,Bluetooth

More information:
Github
Rendering The Real Sight
—— Rendering More Colors, Bringing More Immersive Movie Experience ——

AMOLED Active Light-Emitting Screen
—— The Next-Generation Display Technology, Active Light-Emitting Pixels ——
Compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image

High Contrast, No Detail Would Be Lost
—— Striking Contrast Radio ——
Compared to normal LCD displays, the AMOLED screen features an ultra-high contrast ratio,
which means a hundredfold light/dark performance.
Even when representing gradations and details like the deep starry sky, it can bring you an immersive experience easily.

Virtually 0nit True Black
—— Brighter Highlight, Darker Shadow ——
The regular LCD requires a backlight and color film to work, i.e., it represents colors by controlling
the white light from the backlight layer to pass through the color film, and generally, there's the so-called light-leak issue.
Unlike LCD, the AMOLED features active emissive technology, each pixel on the AMOLED will light up by itself like a firefly,
or turn off completely, to create a brighter highlight or true black shadow while retaining rich details.

Wide viewing angle
—— With no color distortion from any angle ——

Design Features


CPU and On-Chip Memory
ESP32-S3R8 Xtensa® dual-core 32-bit LX7 microprocessor, up to 240 MHz
8MB PSRAM
16MB Flash
Wi-Fi
IEEE 802.11 b/g/n-compliant
Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band
1T1R mode with data rate up to 150 Mbps
Bluetooth
Bluetooth LE: Bluetooth 5, Bluetooth mesh
High power mode (20 dBm)
Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
Internal co-existence mechanism between Wi-Fi
and Bluetooth to share the same antenna
Display Screen
Screen: 1.91inch AMOLED
Resolution: 240*536
Active Area: 19.8*44*22mm
Driver IC: RM67162
Interface: QSPI
Viewing Angle: IPS Full View Angle
Development
Arduino
PlatformlO-IDE
Micropython

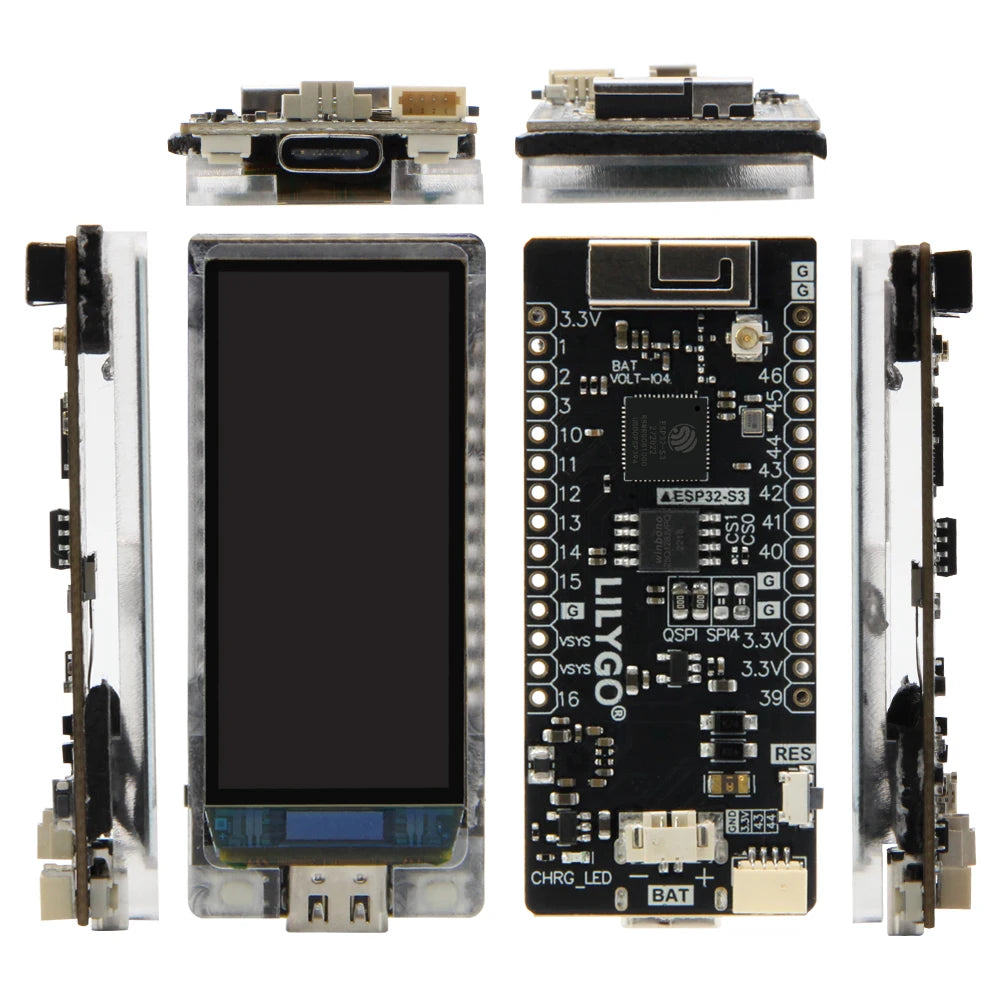

Onboard functions
Boot(IO00)
Reset
IO21 Button
