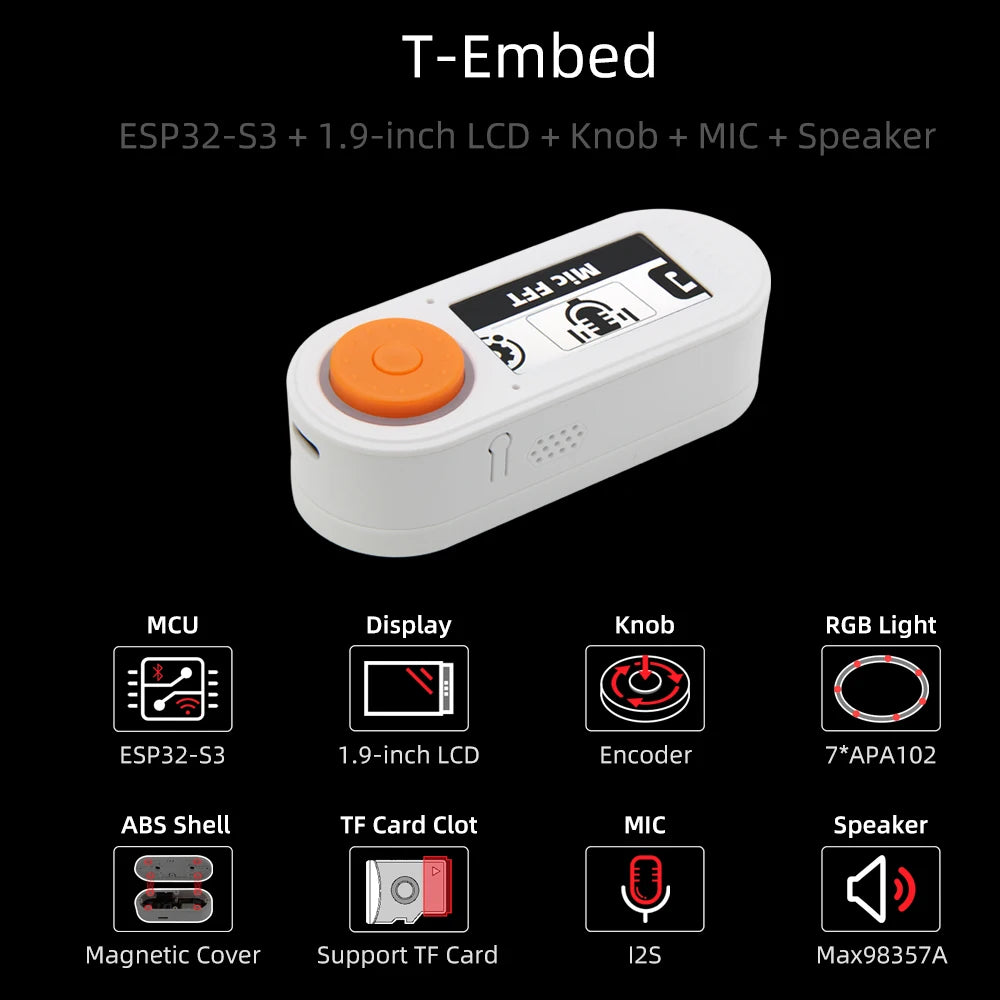

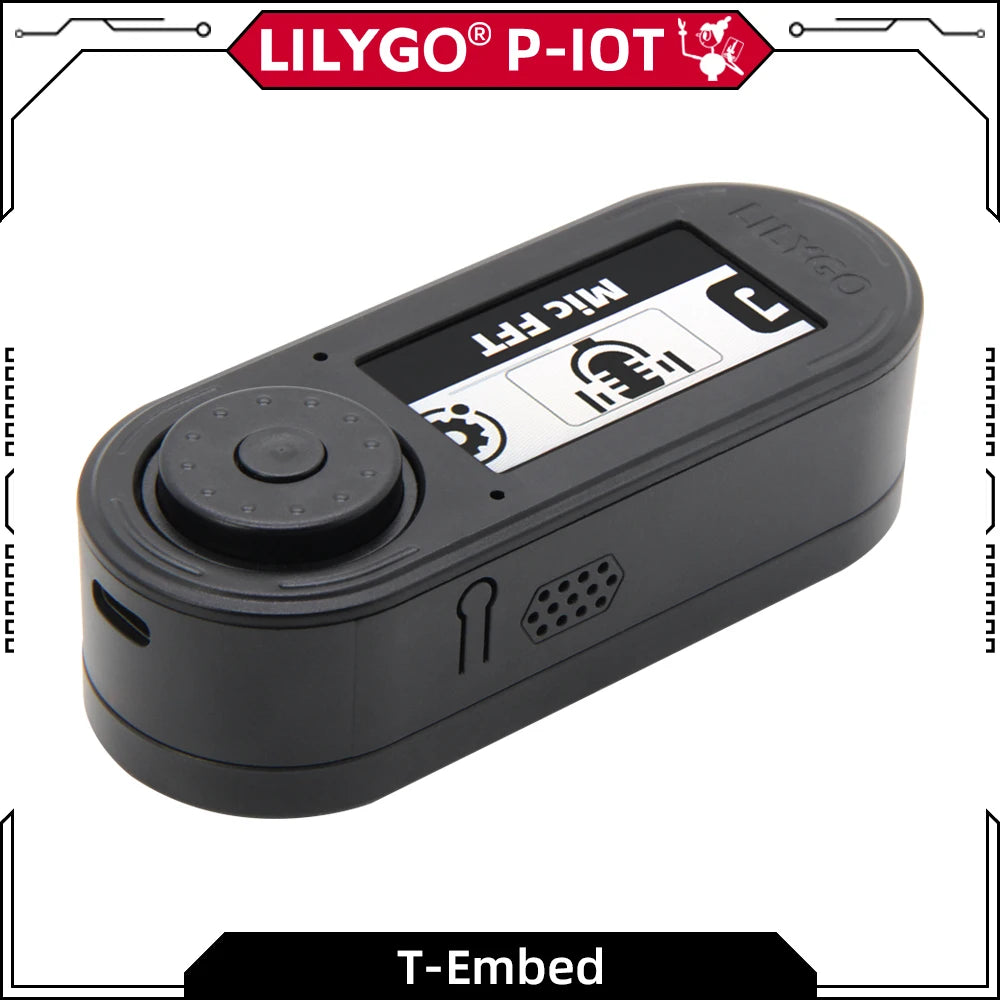

LILYGO® T-Embed ESP32-S3 Development Board With 1.9-inch LCD Display Screen Mechanical Encoder RGB LED Light MIC Speaker TF Slot

LILYGO® T-Embed ESP32-S3 Development Board With 1.9-inch LCD Display Screen Mechanical Encoder RGB LED Light MIC Speaker TF Slot

416,32 SEK
416,32 SEK 416,32 SEK
Rea Slutsåld
Skatter ingår.
Color
Ships From

SPECIFICATIONS

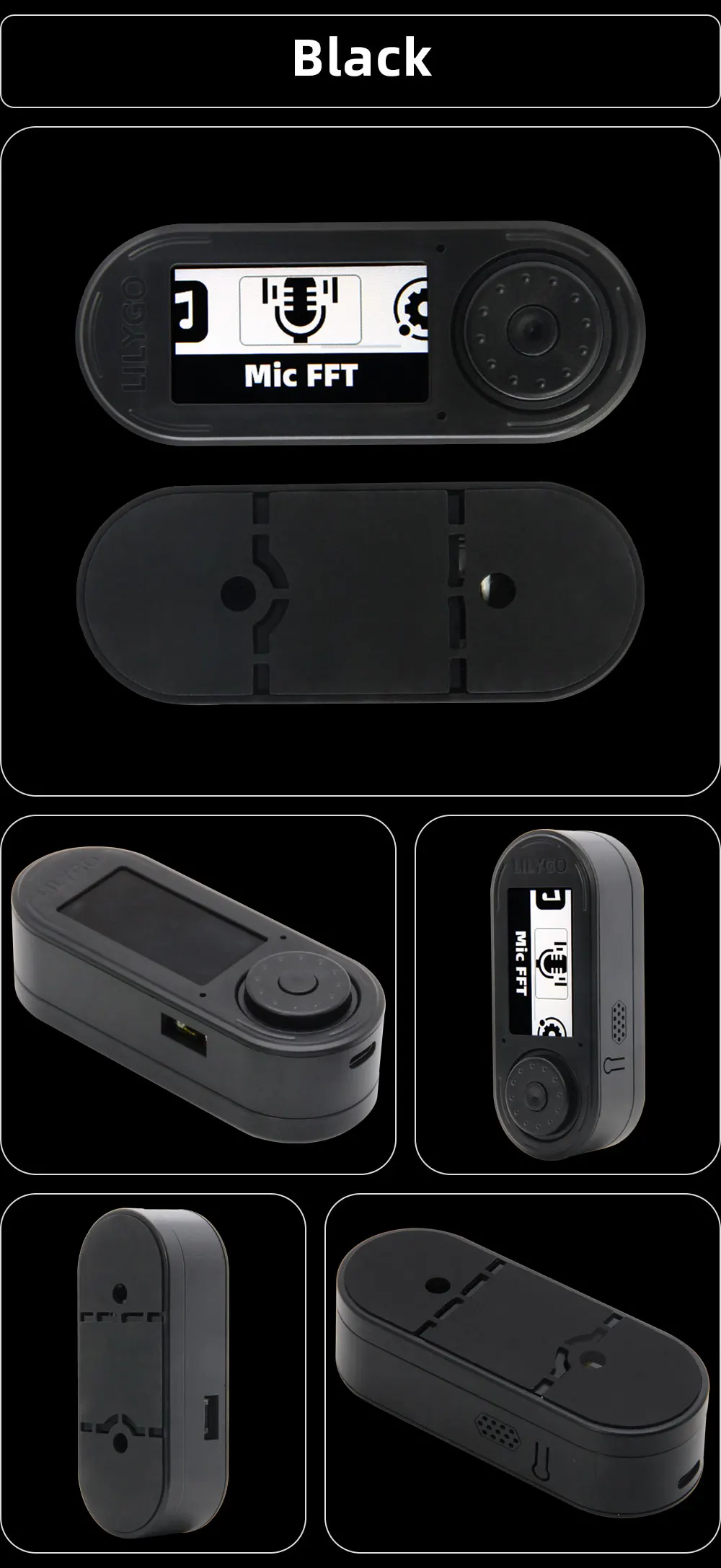

Black: K209

Brand Name: lilygo

Chipset: ESP32-S3

Compatible Audio & Video Equipment Style: Digital-to-Analog Converter (DAC),Professional Audio Equipment,Display Equipment

High-concerned chemical: None

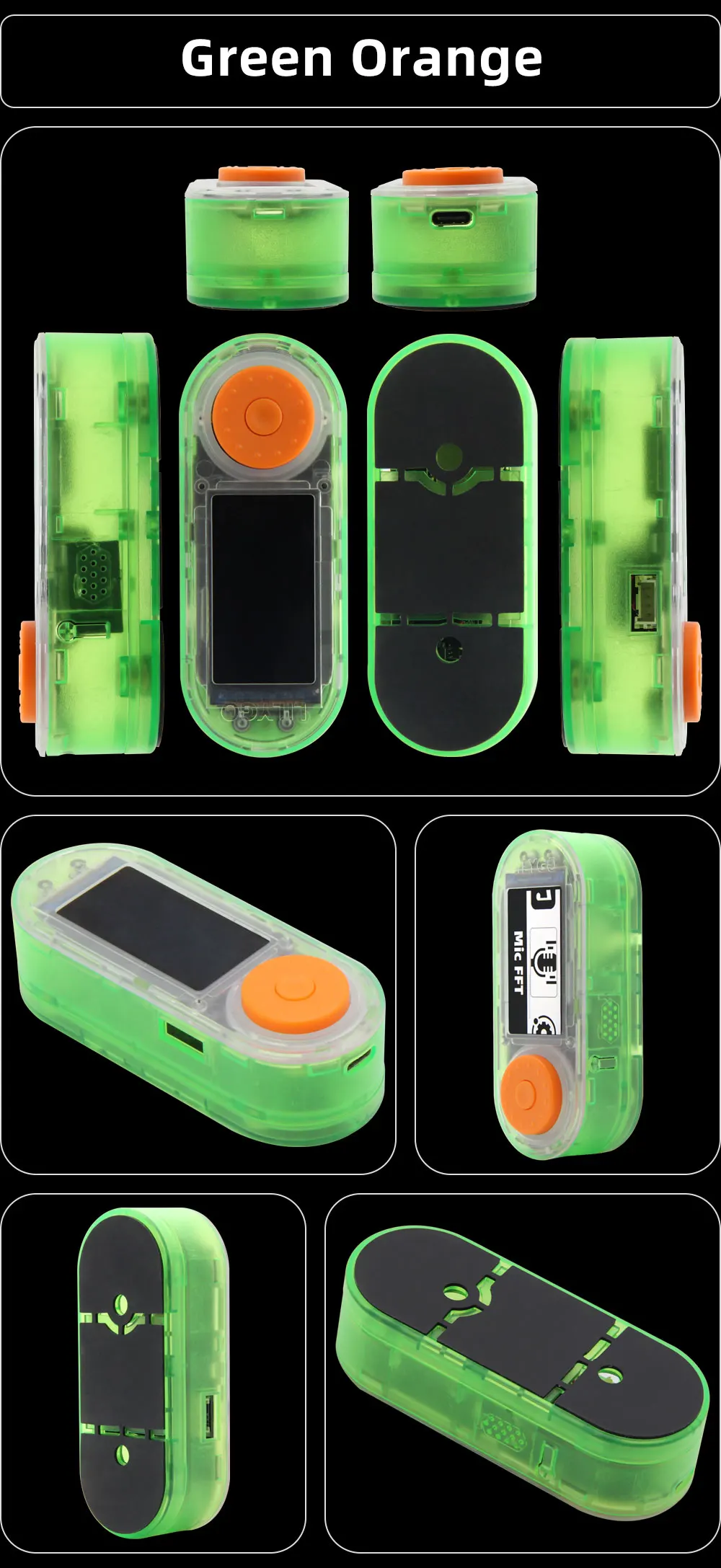

Jelly Green: K212

Model Number: T-Embed

Origin: Mainland China

Package: Yes

Powered By: JST or USB Type-C

Support 1: TF Card Slot

Support 2: Microphone Speaker

Support 3: Grove

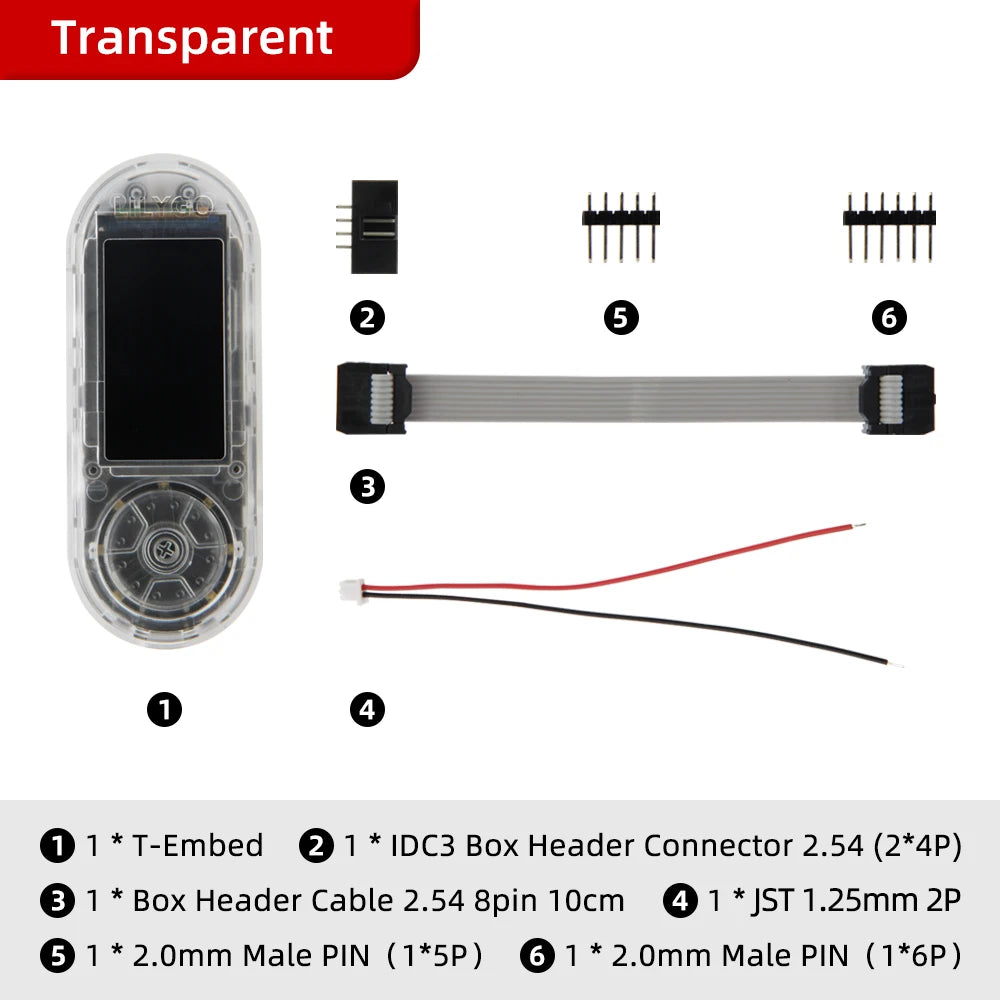

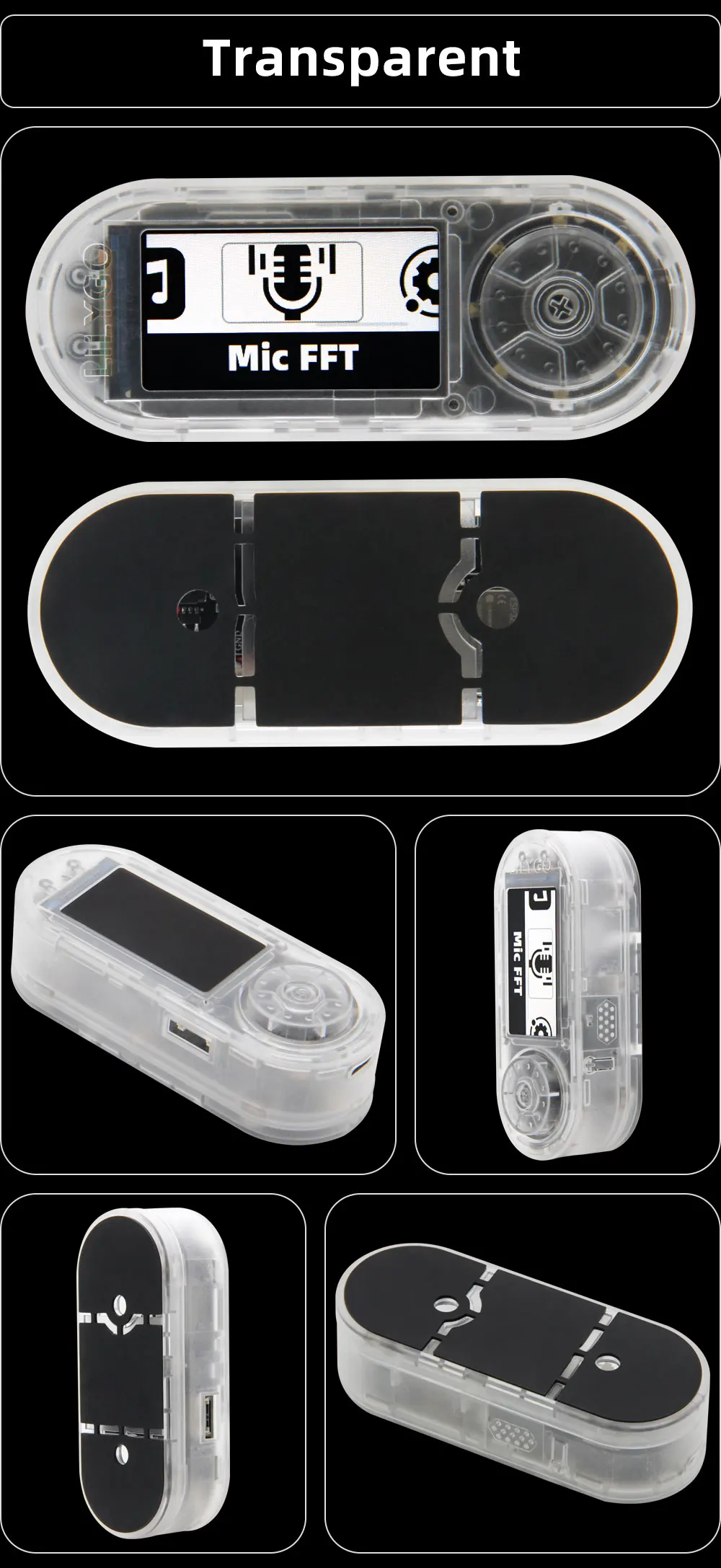

Transparent: K211

White: K210

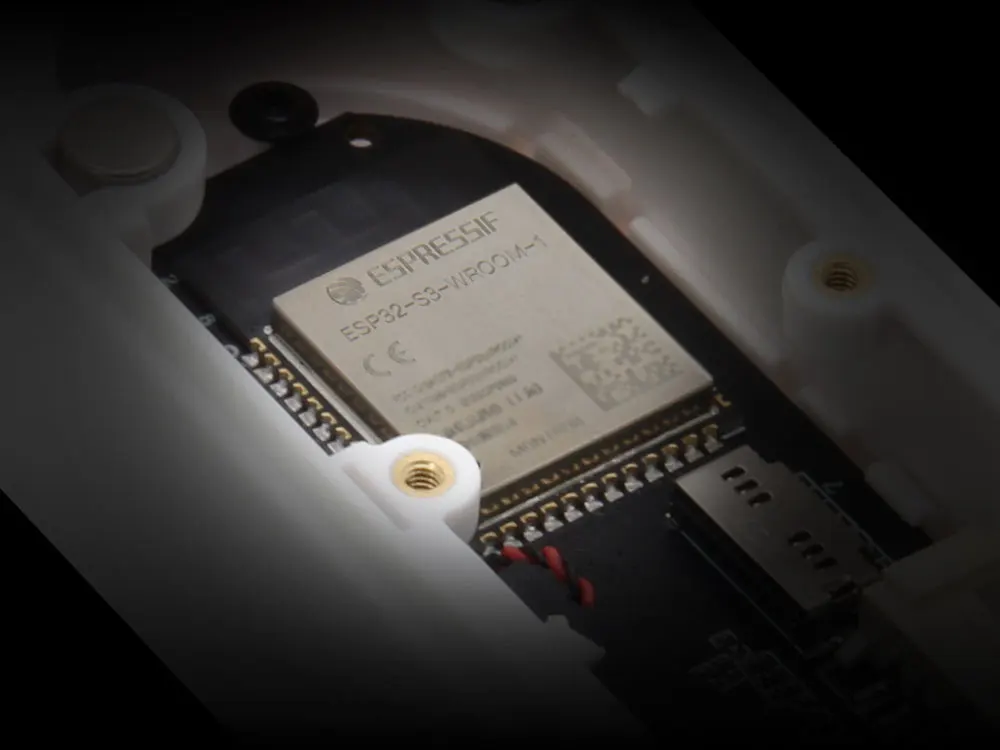

ESP32-S3- WROOM-1

——  Xtensa® dual-core 32-bit LX7 microprocessor  ——

2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE) module; Built around ESP32-S3 series of SoCs.

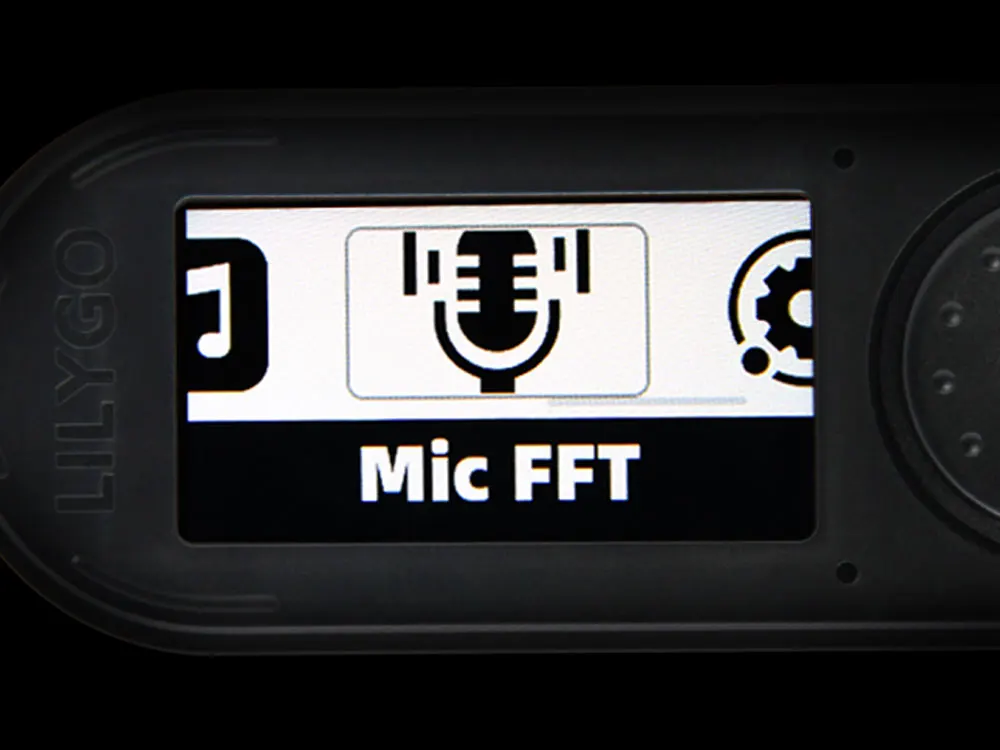

Full Color TFT Display

——  1.9-inch ST7789 IPS TFT LCD Screen  ——

This display can show various things, such as: Menu navigation, Notifications, Customization options.

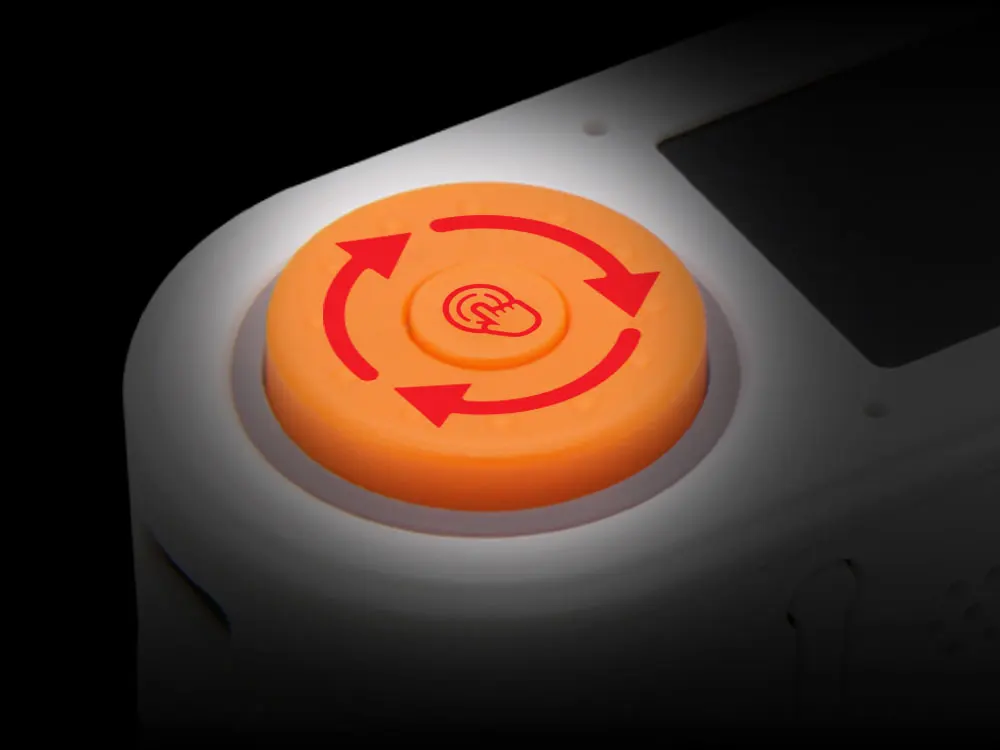

Mechanical Encoder

——  That converts rotational movement into signals  ——

Encoders can be used for tasks like adjusting volume, setting parameters, or scrolling through menus in various devices.
Can be used in Audio Equipment, Industrial Control Systems, Computer Input Devices, Medical Devices, Gaming Controllers.

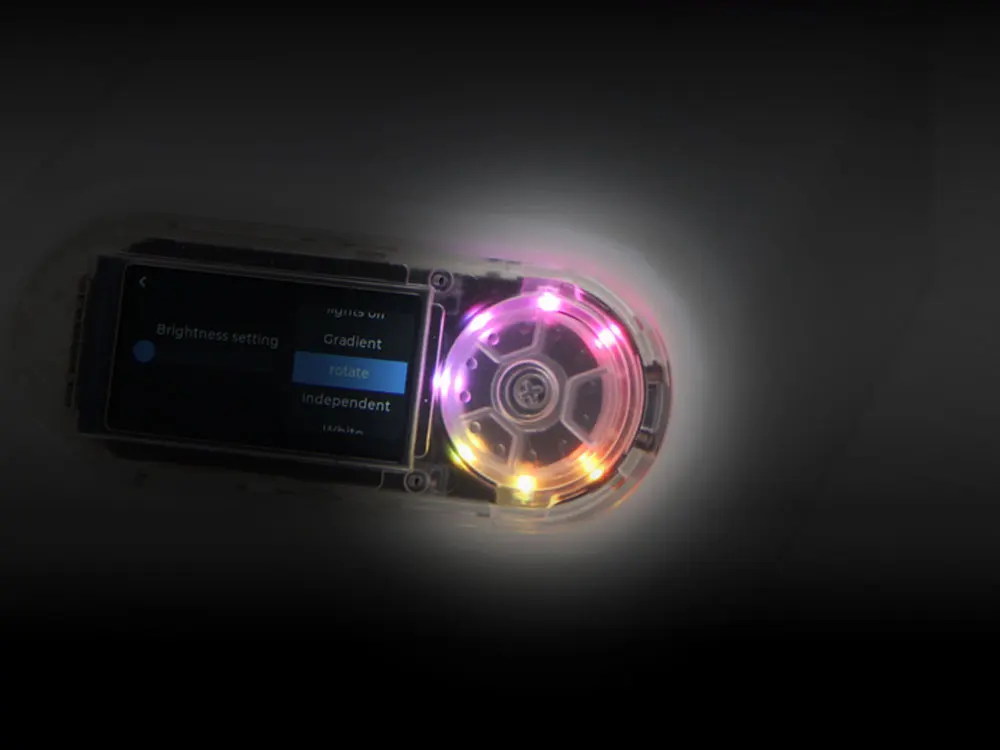

APA102 RGB LED

——  The APA102 is a type of RGB LED (Light Emitting Diode)  ——

Main features and information: Color Control, Digital Communication, Integrated Drivers,
Arduino and Raspberry Pi Compatibility

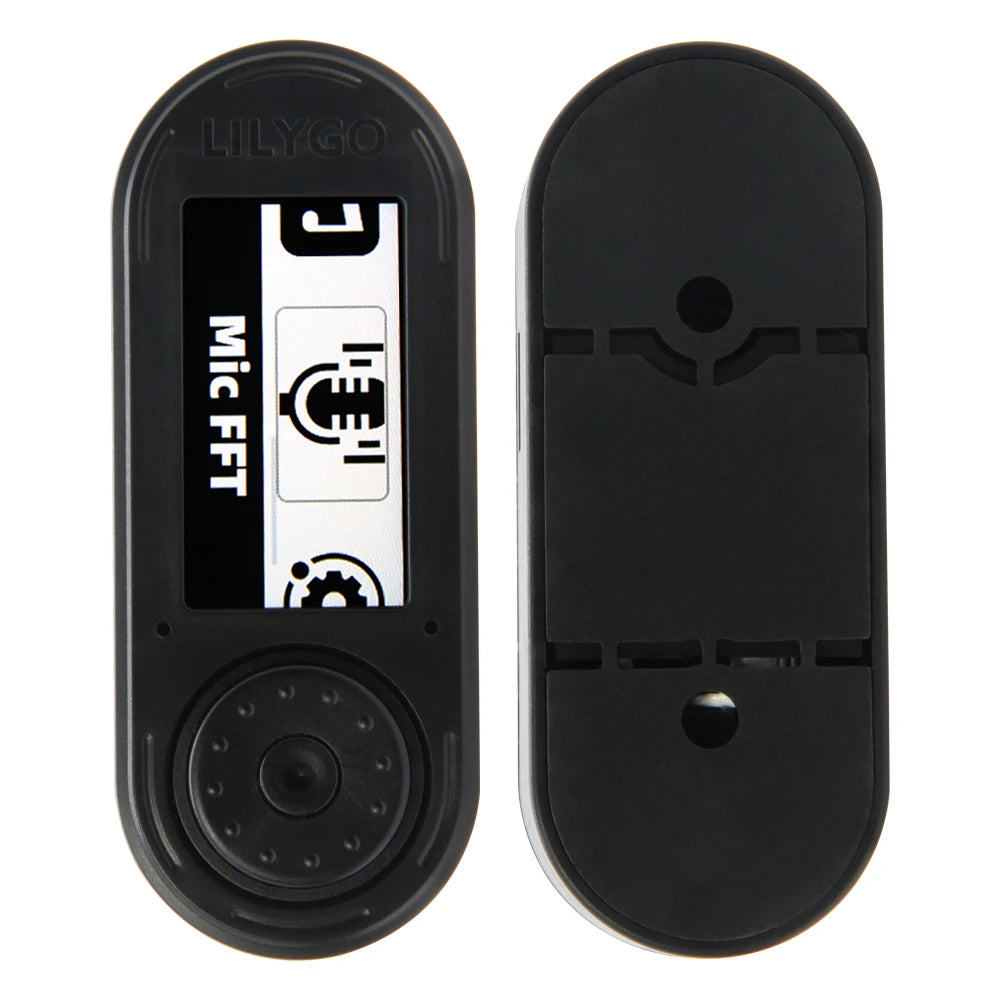

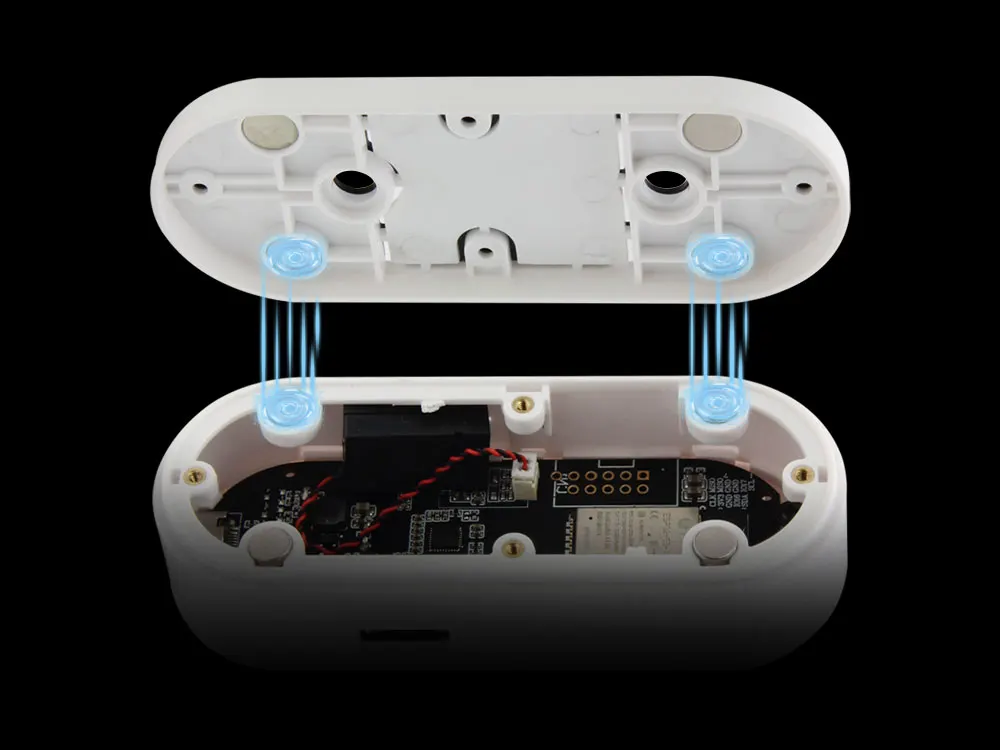

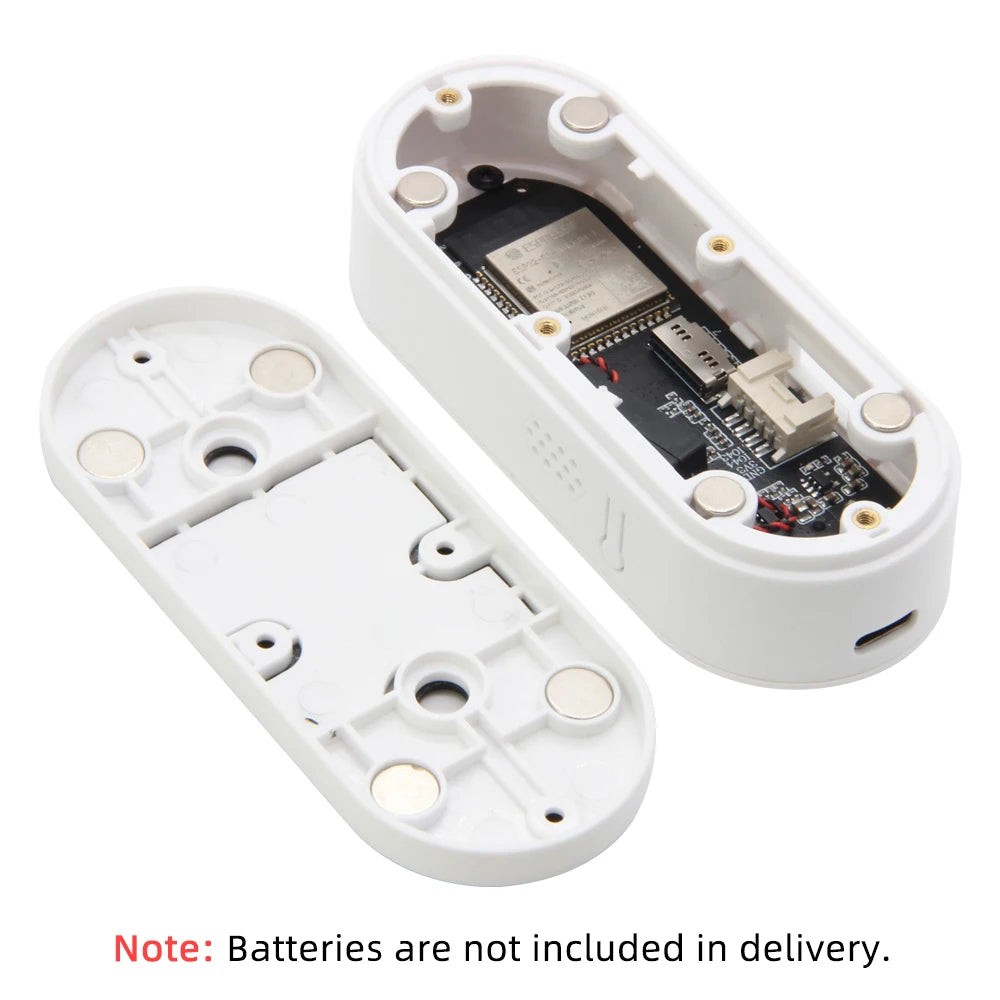

Magnetic Back Cover

——  That uses magnets to attach to the back of the device  ——

The Magnetic Cover simplifies battery replacement and can be affixed to a compatible machine surface,
enhancing convenience and efficiency.
⚠️⚠️⚠️ Product does not include batteries  ⚠️⚠️⚠️




MCU and On-Chip Memory

  • ESP32-S3 Dual-core LX7 Microprocessor, up to 240 MHz

  • 8MB PSRAM

  • 16MB Flash

Wi-Fi

  • IEEE 802.11 b/g/n-compliant

  • Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band

  • 1T1R mode with data rate up to 150 Mbps

Bluetooth

  • Bluetooth LE: Bluetooth 5, Bluetooth mesh

  • High power mode (20 dBm)

  • Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

  • Internal co-existence mechanism between Wi-Fi
    and Bluetooth to share the same antenna



More information:

  • Github

  • Contribution from "У Павла!"

Display Screen

  • Screen: 1.9-inch TFT LCD

  • Resolution: 170(H)RGB * 320(V)

  • Driver Chip: ST7789

  • Interface: SPI

  • Color: Full Color

Development

  • Arduino

  • ESP-IDF

  • Micropython

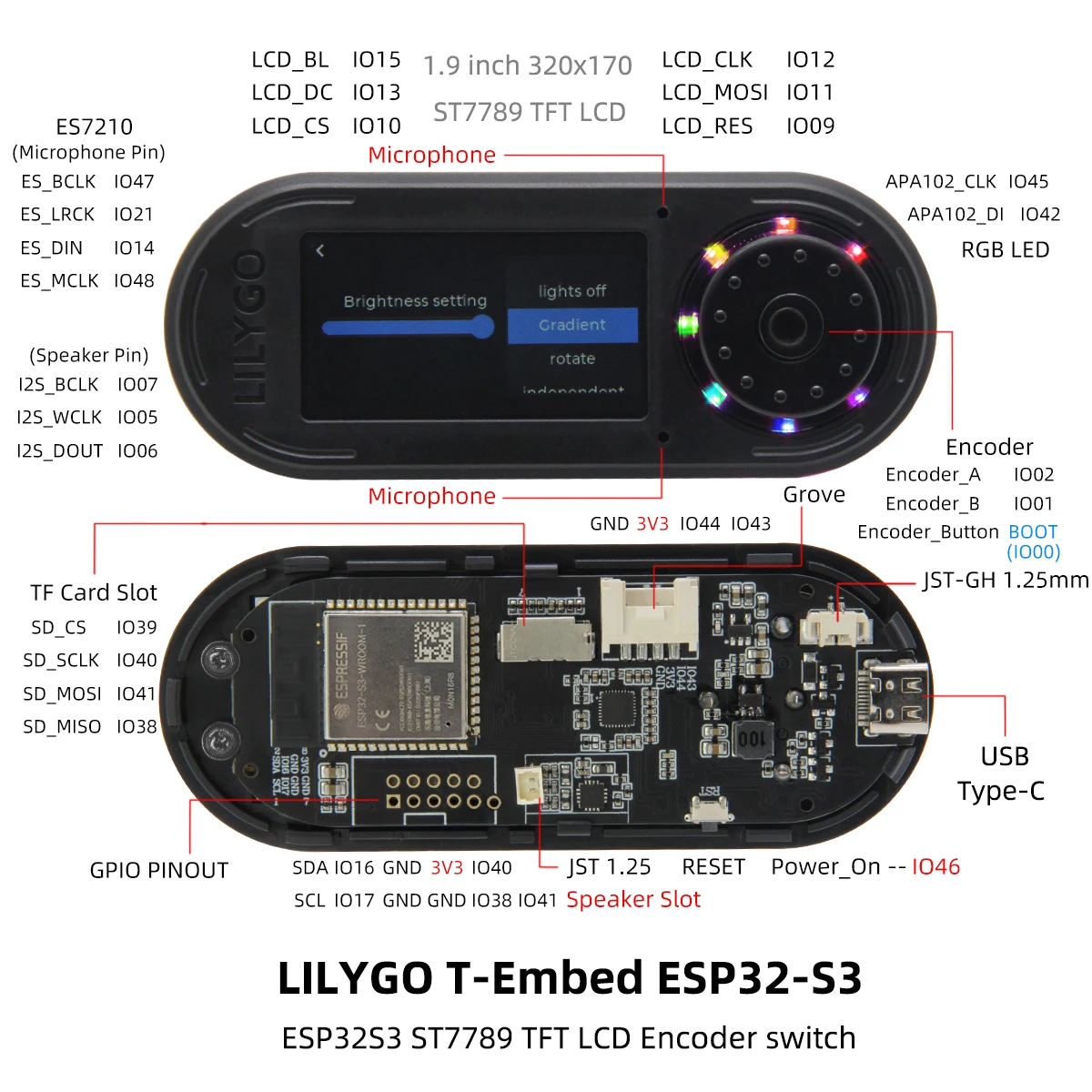

Onboard functions

  • Bat voltage detection: IO04

  • Button: Reset + BOOT
