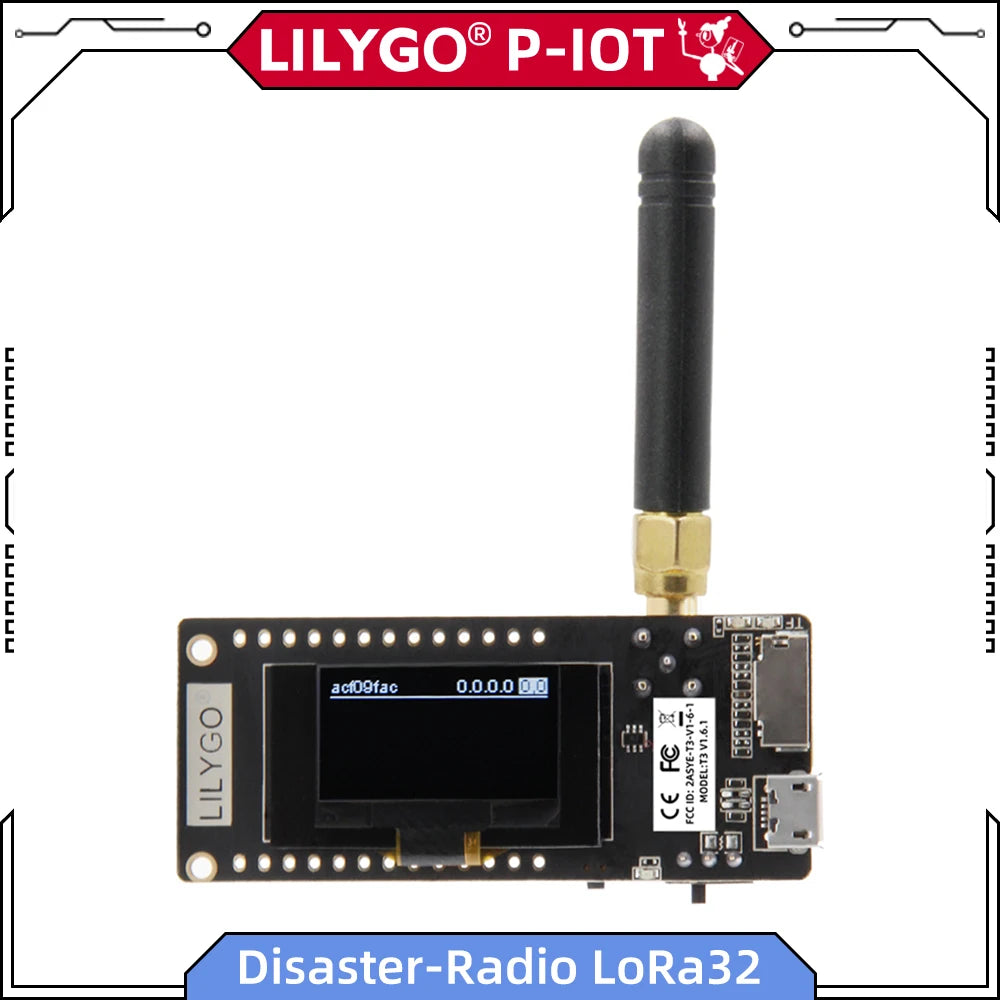

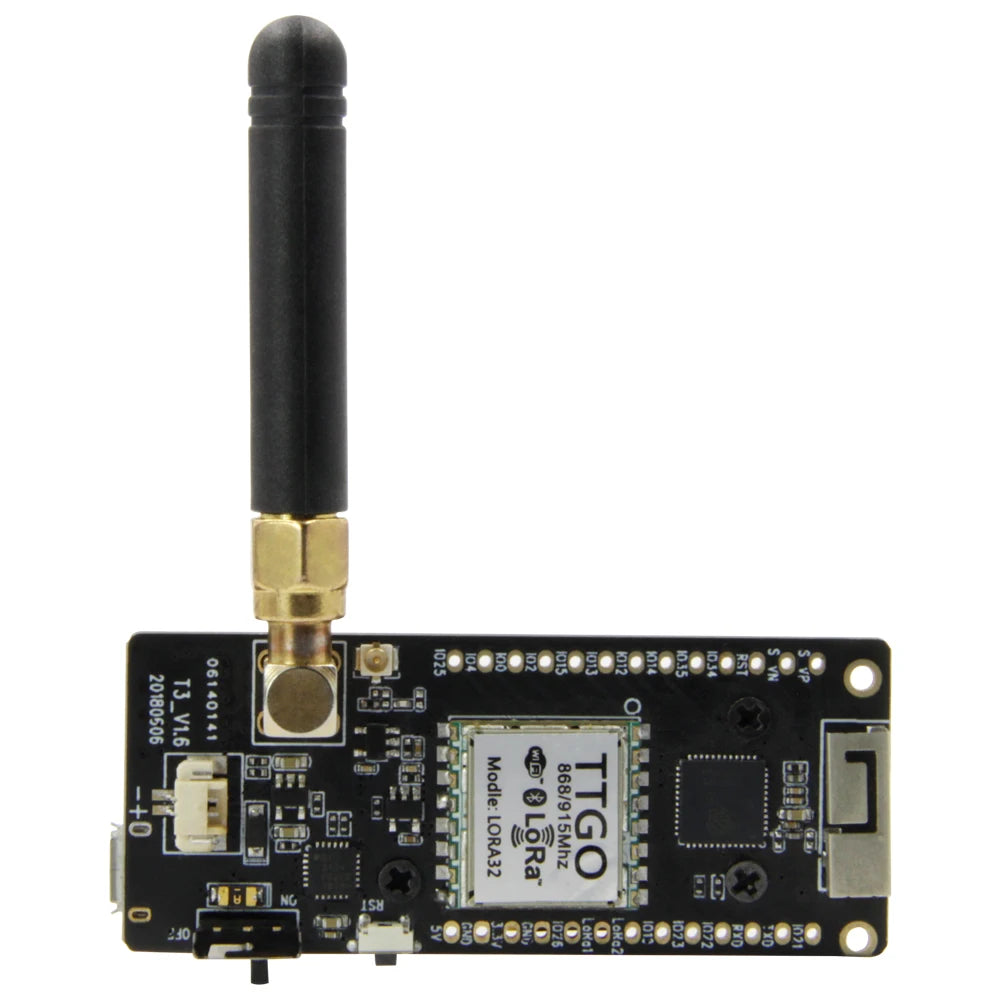

LILYGO® TTGO Disaster-Radio LoRa32 V2.1 Development Board ESP32 LoRa Module 433MHz 868MHz 915MHz WIFI Bluetooth 0.96-Inch OLED

328,91 SEK

~~328,91 SEK~~ 328,91 SEK

Rea Slutsåld

Skatter ingår.

Color SX1276 868MHz CH9102 SX1278 433MHz CH9102 SX1276 915MHz CH9102

Ships From China Mainland

SPECIFICATIONS

433MHz CH9102F: Q134

433MHz CP2104: H253

868MHz CH9102F: Q168

868MHz CP2104: H240

915MHz CH9102F: Q211

Brand Name: lilygo

Compatible Brand/Model: None

High-concerned chemical: None

Model Number: ESP32-Paxcounter LoRa32 V2.1 1.6.1

Origin: Mainland China

Product Parameters
Working Voltage	1.8~3.7v
Acceptable Current	10~14mA
Transmit Current	120mA@+20dBm
	90mA@+17dBm
	2mA@+13dBm
Operating Frequency	433/868M/915MHz
Transmit Power	+20dBm
Receive Sensitivity	-139dBm@LoRa &62.5Khz&SF=12&146bps
	-136dBm@LoRa &125Khz&SF=12&293bps
	-118dBm@LoRa &125Khz&SF=6&9380bps
	-123dBm@FSK&5Khz&1.2Kbps
Frequency Error	+/-15KHz
FIFO Space	64Byte
Data Rate	1.2K~300Kbps@FSK
Data Rate	0.018K~37.5Kbps@LoRa
Modulation Mode	FSK,GFSK,MSK,GMSK,LoRa TM，OOK
Interface Form	SPI
Sleep Current	334μA@SLEEP
Sleep Current	1.5uA@IDLE
Operating Temperature	-40℃- +85℃

Features	Digital RSSI function
	Automatic frequency correction
	Automatic gain control
	Fast wake-up and frequency hopping
	Highly configurable data packet handler
SMA Antenna	TP4054

More Information

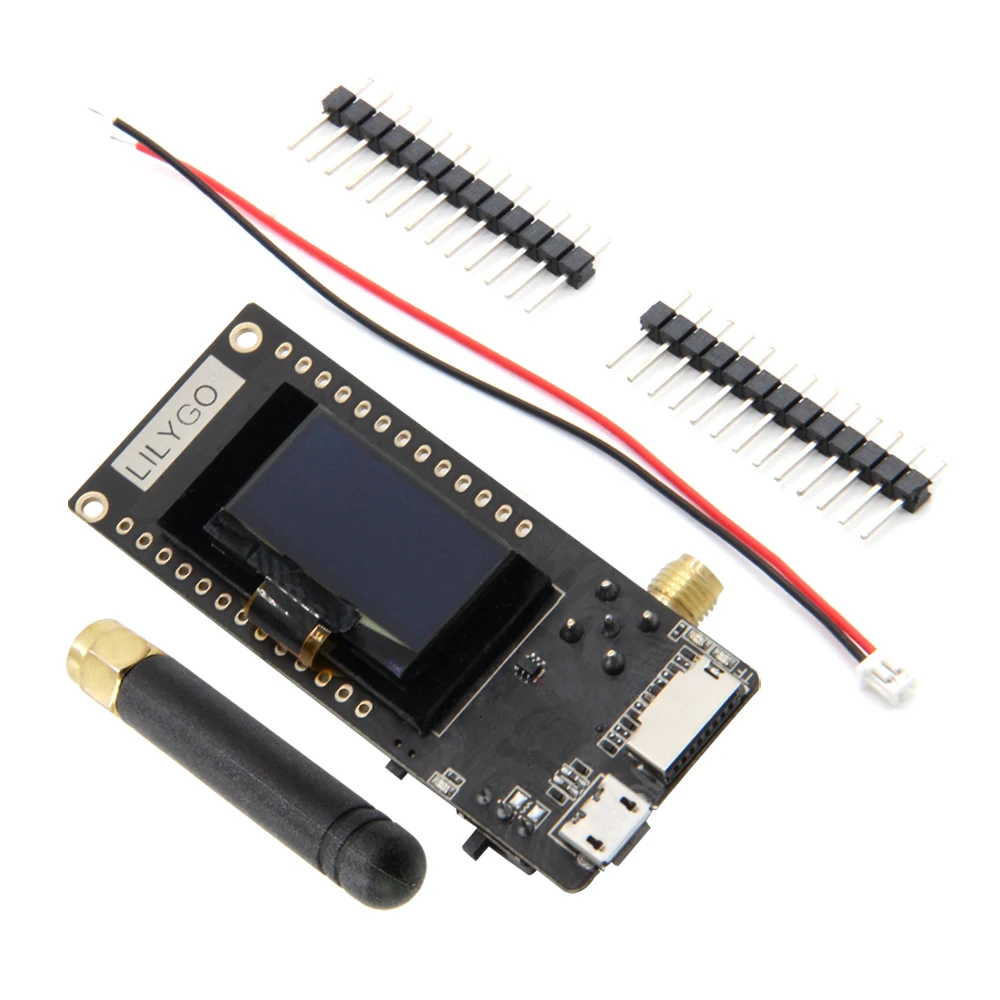

	What's in the box
	1 X LoRa32 V2.1 433/868/915 MHz
	1 X Power Cable(Jst 2pin 1.25mm)
	1 X Antenna
	2 X Pin
	(Notice:The shipping list does not include battery and TF card）
